By using the indoor lighting settings, you can adjust the times shown in graphs depending on actual lighting times.
By default, Sunrise and Sunset times are shown in the graphs to help you quickly see when a plant receives light or not. This is also enhanced by the grey and white areas during dark and light periods.
Introduction
However, at indoor facilities using artificial lighting, Sunrise and Sunset times do not reflect with the actual situation.
This can be adjusted with the "Indoor lighting" setting. With this setting you can set your lights ON and OFF times, and show them accordingly in our graphs. Giving you a more accurate picture of when your plants activity.
Note
- Only users with the "Super grower / Admin" role can make these adjustments. If you want to change your role, please contact us.
Step 1: Open the settings page
Adjust your settings with the following steps:
- Click on the three dots next to the location name
- Go to 'Admin options'
- Click on 'Edit location'
- Click on the tab 'Lighting'

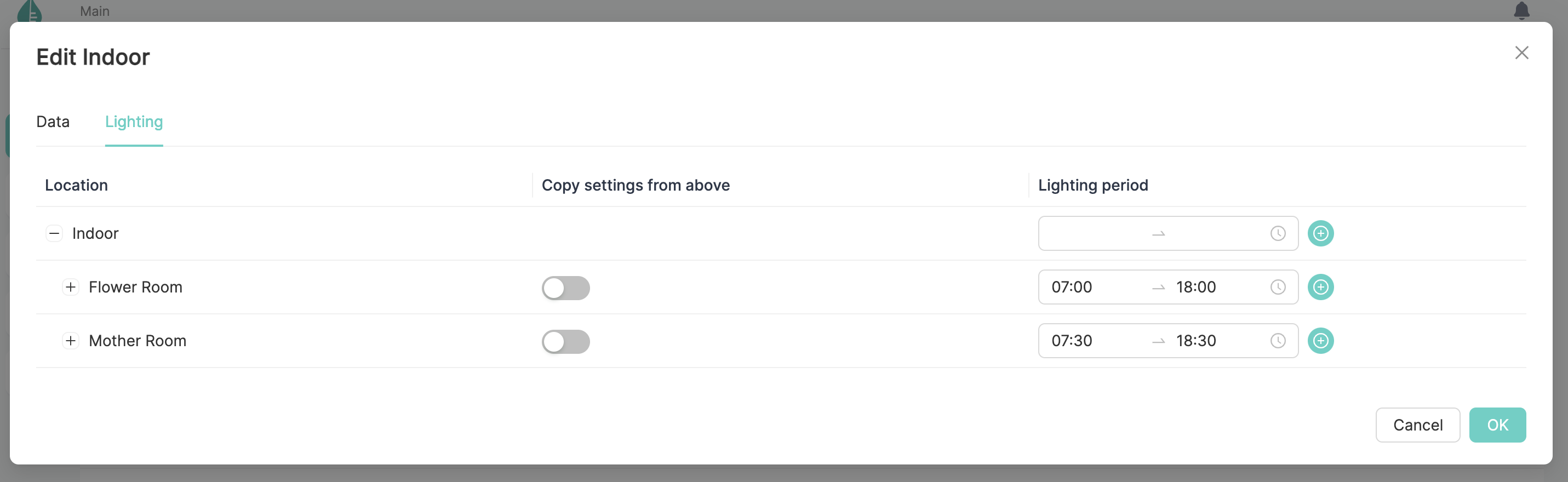

Step 2: Enter the lighting settings
- You can set your lighting times per location, compartment/room, section/zone.
- By clicking the '+ button', you can add multiple lighting times per location.
- With the "Copy settings from above” toggle, you can quickly copy times from higher layers to layers below.
- Make sure you click on 'OK' each time you select a time under 'Lightning period'.
- Click on 'OK' to save changes
Show lights on/off in graph
To show the lights on/off in graphs, follow these two steps:

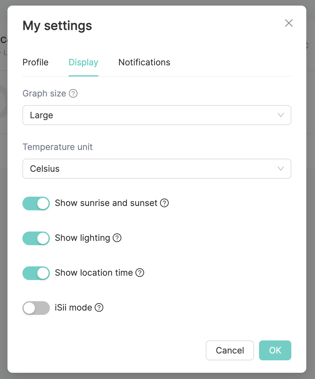

- Go to your User Settings
- Choose the tab 'Display' and turn on the toggle 'Show lighting' and click 'OK'.
- You may want to turn off 'Show sunrise and sunset' if you don't want to see these in your graphs.
